fsf::CPassiveFilterBase Class Reference
[Filters]

The passive filter base class. More...

#include <FsfFilter.h>

Inherits fsf::CFilter.

Inherited by fsf::CPassiveFilter< N >.

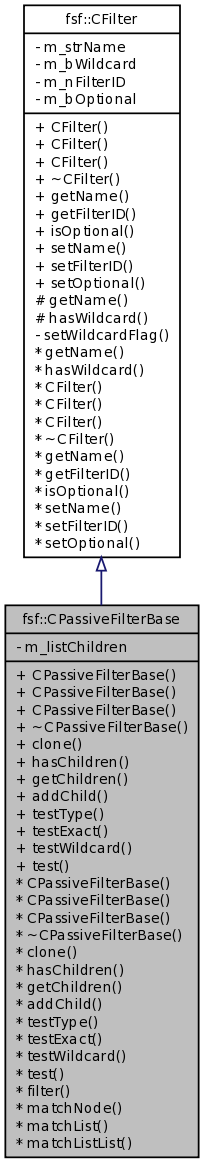

Collaboration diagram for fsf::CPassiveFilterBase:

[legend]

List of all members.

Public Member Functions
Creators
	CPassiveFilterBase ()
	0-parameter constructor
	CPassiveFilterBase (const std::string &strName, long nFilterID=-1, bool bOptional=false)
	3-parameter constructor: target name, filter ID, optional flag
	CPassiveFilterBase (const CPassiveFilterBase &f)
	Copy constructor.
virtual	~CPassiveFilterBase ()
	Virtual destructor.
virtual CPassiveFilterBase *	clone () const =0
	Cloning: necessary for runtime polymorphism This is a pure virtual function that must be overriden by derived classes.
Accessors
bool	hasChildren ()
	Checks whether this filter has any subfilters.
void	getChildren (std::list< CPassiveFilterBase * > &listFilters)
	Gets a list of pointers to this filter's subfilters.
Manipulators
void	addChild (CPassiveFilterBase *pFilter)
	Adds argument passive filter to this filter's list of subfilters.
Local matching
virtual bool	testType (CNode *pNode)
	Tests whether the agument's node type is compatible with this filter's node type This is aplace holder that must be overridden in derived classes.
virtual bool	testExact (CNode *pNode)
	Tests whether the argument's type and names match this filter's node type and name (regular name case).
virtual bool	testWildcard (CNode *pNode)
	Tests whether the argument's type and names match this filter's node type and name (pattern case).
virtual bool	test (CNode *pNode)
	Tests whether the argument's type and names match this filter's node type and name Calls testExact or testWildcard as appropriate.
Filtering
Filtering functions.
bool	filter (PassiveHandleList &listHandles, CPassiveHandle *pRootHandle)
	Passive filtering is performed using handles to avoid problems if nodes on passive pulse are destroyed by other threads.
bool	matchNode (CPassiveHandle *pNHandle)
bool	matchList (PassiveHandleList &listHandles, PassiveHandleList &listRHandles, PassiveHandleList &listNHandles)
static bool	matchListList (PassiveHandleList &listHandles, PassiveFilterList &listFilter, PassiveHandleList &listRHandles, PassiveHandleList &listNHandles)

---

Detailed Description

The passive filter base class.

---

Constructor & Destructor Documentation

fsf::CPassiveFilterBase::CPassiveFilterBase

(

)

[inline]

0-parameter constructor

fsf::CPassiveFilterBase::CPassiveFilterBase	(	const std::string &	strName,
		long	nFilterID = -1,
		bool	bOptional = false
	)			[inline]

3-parameter constructor: target name, filter ID, optional flag

CPassiveFilterBase::CPassiveFilterBase

(

const CPassiveFilterBase &

f

)

Copy constructor.

Recursively calls copy constructors on this filter's subfilters.

CPassiveFilterBase::~CPassiveFilterBase

(

)

[virtual]

Virtual destructor.

Recursively deletes this filter's subfilters.

---

Member Function Documentation

void fsf::CPassiveFilterBase::addChild

(

CPassiveFilterBase *

pFilter

)

[inline]

Adds argument passive filter to this filter's list of subfilters.

virtual CPassiveFilterBase* fsf::CPassiveFilterBase::clone

(

)

const [pure virtual]

Cloning: necessary for runtime polymorphism This is a pure virtual function that must be overriden by derived classes.

Implemented in fsf::CPassiveFilter< N >.

bool CPassiveFilterBase::filter	(	PassiveHandleList &	listHandles,
		CPassiveHandle *	pRootHandle
	)

Passive filtering is performed using handles to avoid problems if nodes on passive pulse are destroyed by other threads.

Passive filtering returns at most one passive handle.

Parameters:

[in]	pRootHandle	Pointer to a handle to the target root
[out]	listHandles	List of handles corresponding to matches for this filter in the subtree rooted in pRootHandle

Returns:

true if match found Only one match allowed: listHandles has only one handle in it!

void fsf::CPassiveFilterBase::getChildren

(

std::list< CPassiveFilterBase * > &

listFilters

)

[inline]

Gets a list of pointers to this filter's subfilters.

bool fsf::CPassiveFilterBase::hasChildren

(

)

[inline]

Checks whether this filter has any subfilters.

bool CPassiveFilterBase::matchList	(	PassiveHandleList &	listHandles,
		PassiveHandleList &	listRHandles,
		PassiveHandleList &	listNHandles
	)

Parameters:

[out]	listHandles	List of matched handles
[out]	listRHandles	list of residual handles (unmatched)
[in]	listNHandles	list of node handles to match

Returns:

true if match found

bool CPassiveFilterBase::matchListList	(	PassiveHandleList &	listHandles,
		PassiveFilterList &	listFilter,
		PassiveHandleList &	listRHandles,
		PassiveHandleList &	listNHandles
	)			[static]

Parameters:

[out]	listHandles	List of matched node handles
[in]	listFilter	List of subfilters
[out]	listRHandles	List of residual (unmatched)
[in]	listNHandles	List of node handles

Returns:

true if match found

bool CPassiveFilterBase::matchNode

(

CPassiveHandle *

pNHandle

)

Parameters:

[in]

pNHandle

Pointer to a handle to the input node

Returns:

true if match found

virtual bool fsf::CPassiveFilterBase::test

(

CNode *

pNode

)

[inline, virtual]

Tests whether the argument's type and names match this filter's node type and name Calls testExact or testWildcard as appropriate.

virtual bool fsf::CPassiveFilterBase::testExact

(

CNode *

pNode

)

[inline, virtual]

Tests whether the argument's type and names match this filter's node type and name (regular name case).

virtual bool fsf::CPassiveFilterBase::testType

(

CNode *

pNode

)

[inline, virtual]

Tests whether the agument's node type is compatible with this filter's node type This is aplace holder that must be overridden in derived classes.

Reimplemented in fsf::CPassiveFilter< N >.

virtual bool fsf::CPassiveFilterBase::testWildcard

(

CNode *

pNode

)

[inline, virtual]

Tests whether the argument's type and names match this filter's node type and name (pattern case).

---

The documentation for this class was generated from the following files:

• FsfFilter.h
• FsfFilter.cc
